RealGUIDE™ Z3D Guided Surgery Kit

Designed for ZimVie’s TSX,™ TSV,® Trabecular Metal,™ and Eztetic® Dental Implants

Available for customers based in the U.S.

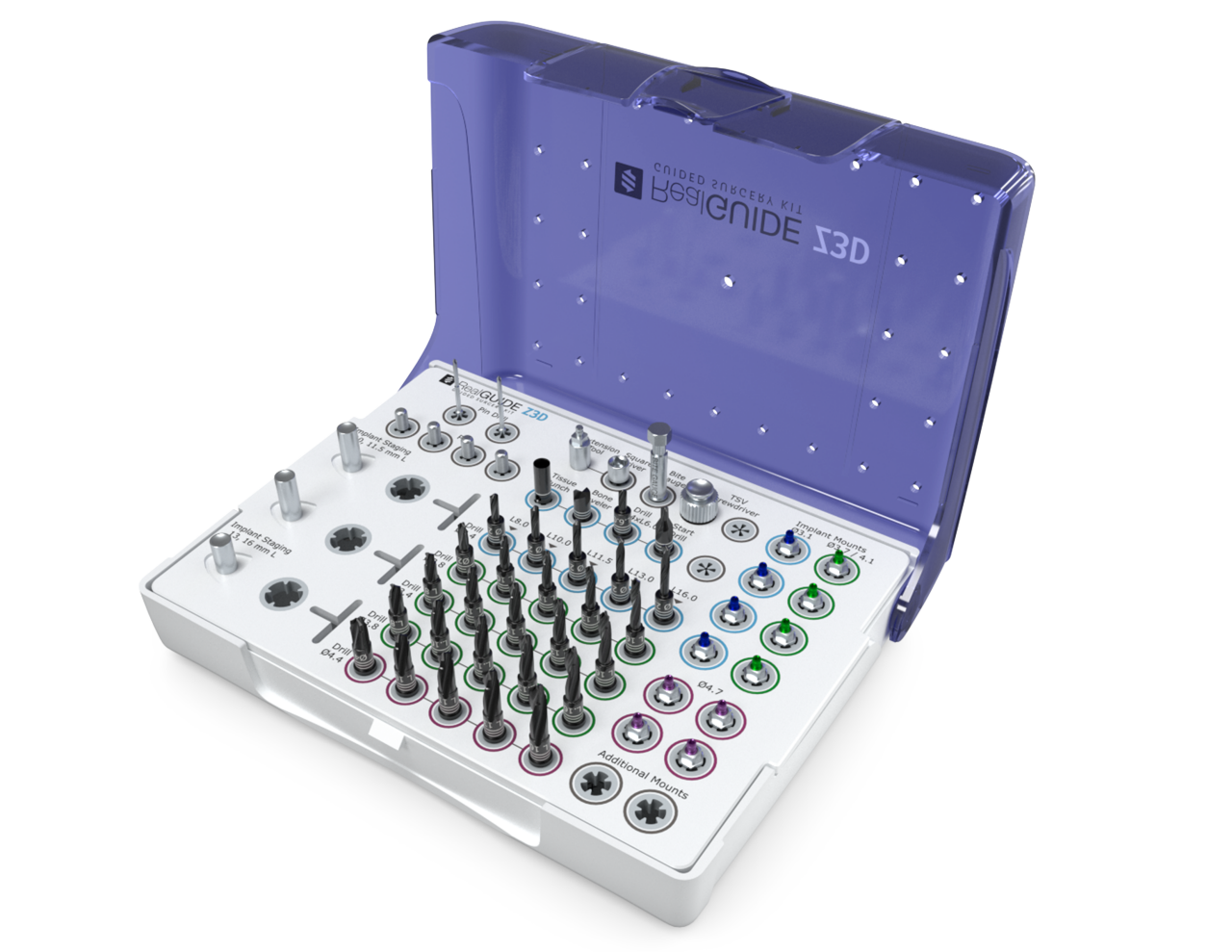

Hero jumplink image
OverviewFeatures & Benefits RealGUIDE Software SuiteResourcesDental eServicesSupportSHOP ONLINE

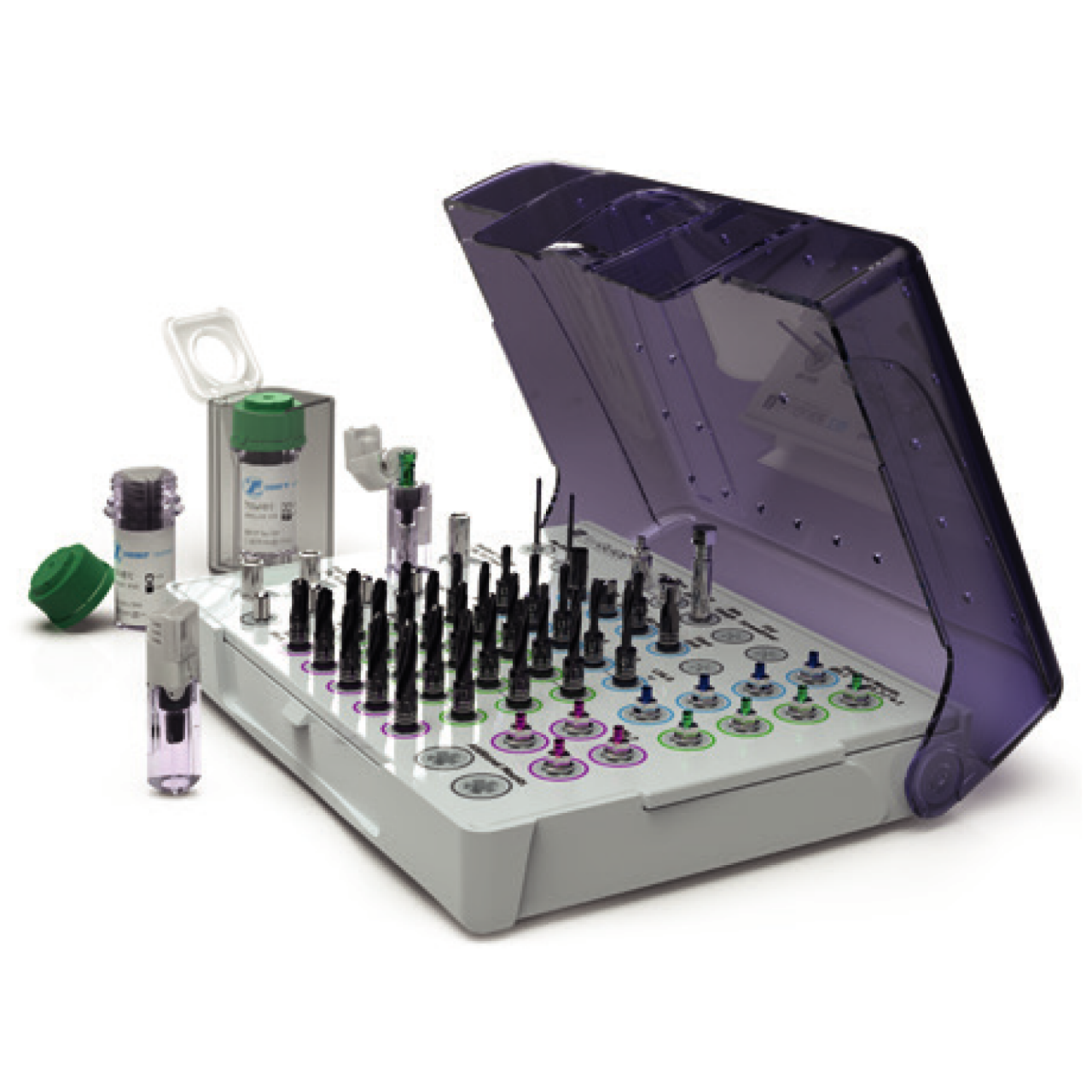

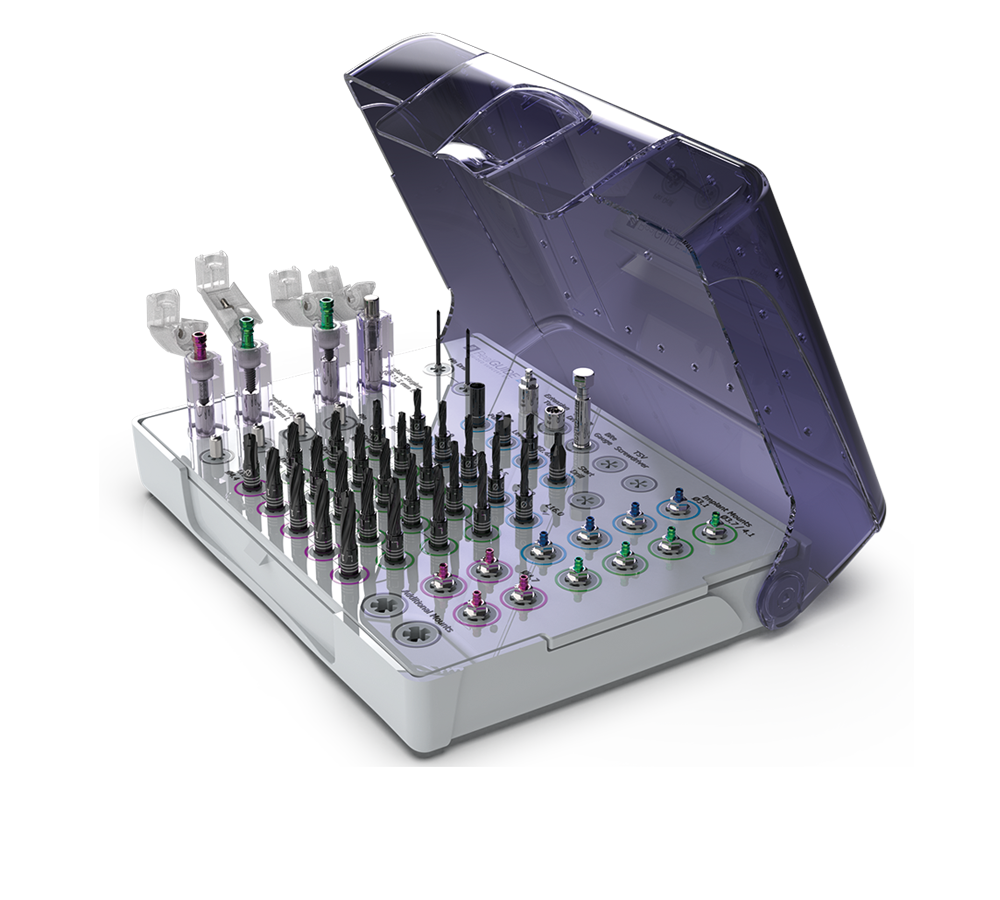

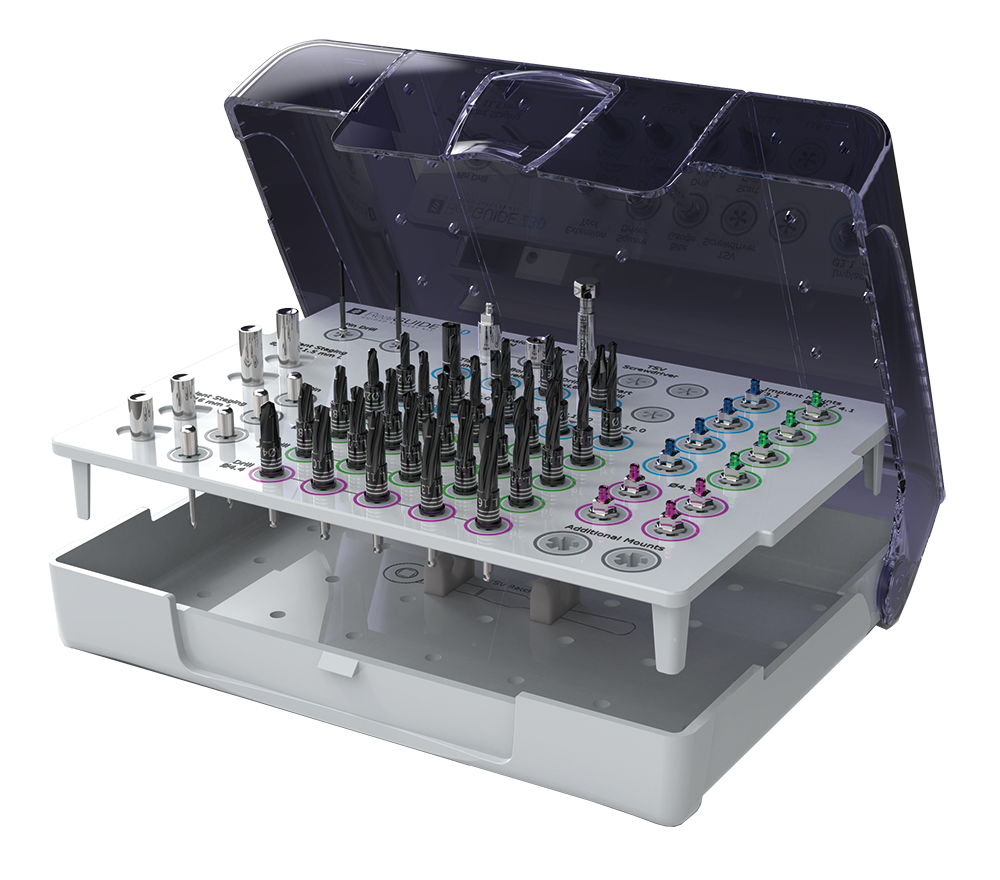

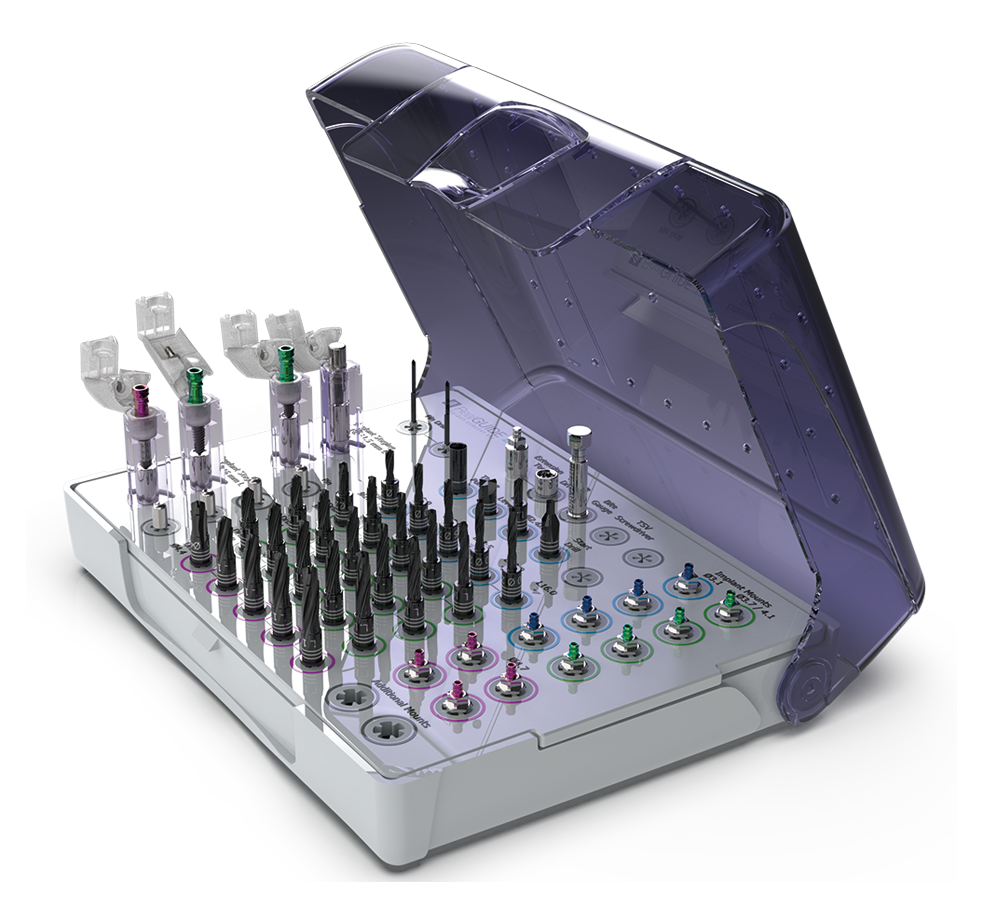

Realguide Z3D Kit

The new RealGUIDE Z3D Guided Surgery Kit contains instruments needed for the planned surgery. It is designed to work with ZimVie’s TSX, TSV, Trabecular Metal, and Eztetic Implant Systems.

The kit information is available in the RealGUIDE Software Suite,  an open system for diagnosis and advanced surgical guide design that will support you with customized drilling reports to be well-prepared for dental implant therapy.

Request More Information

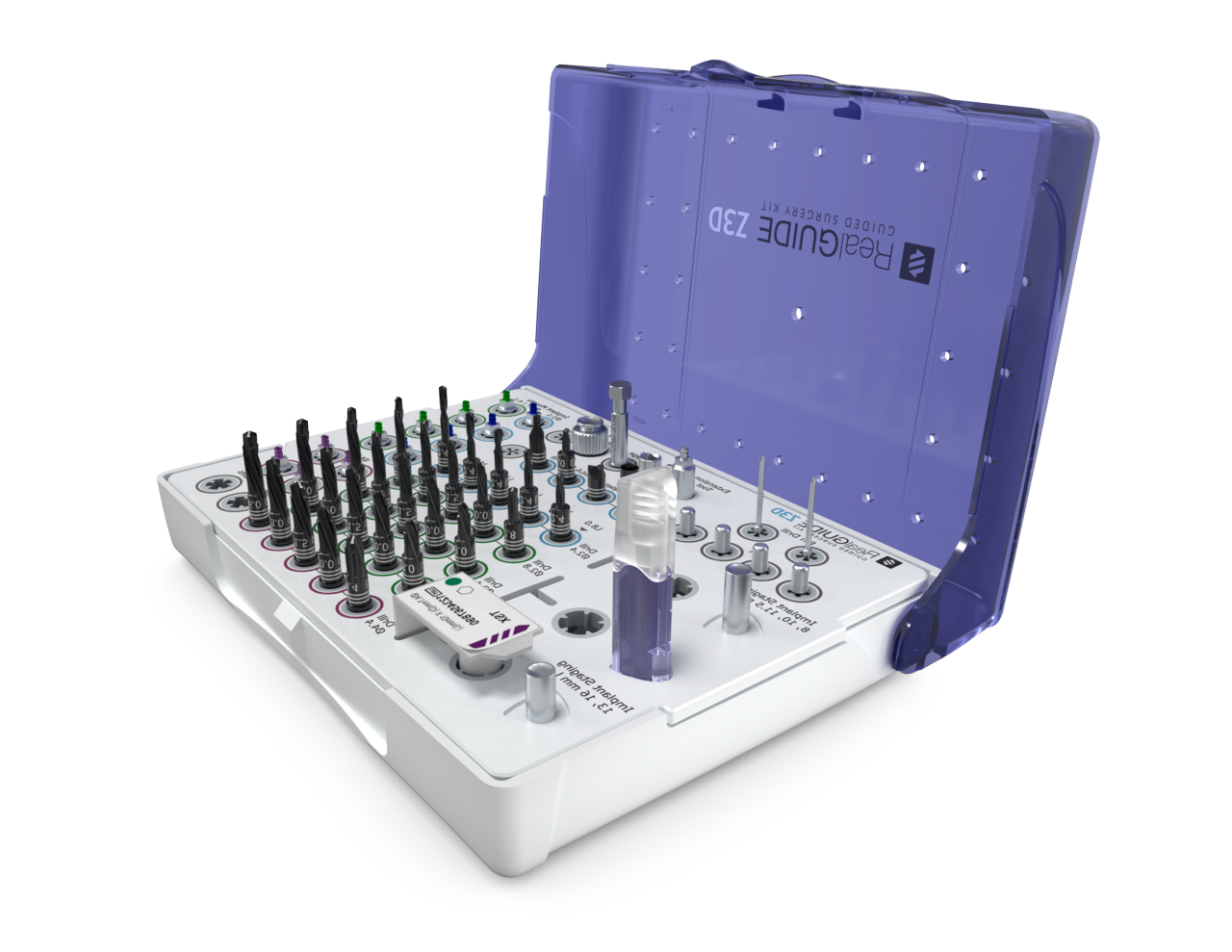

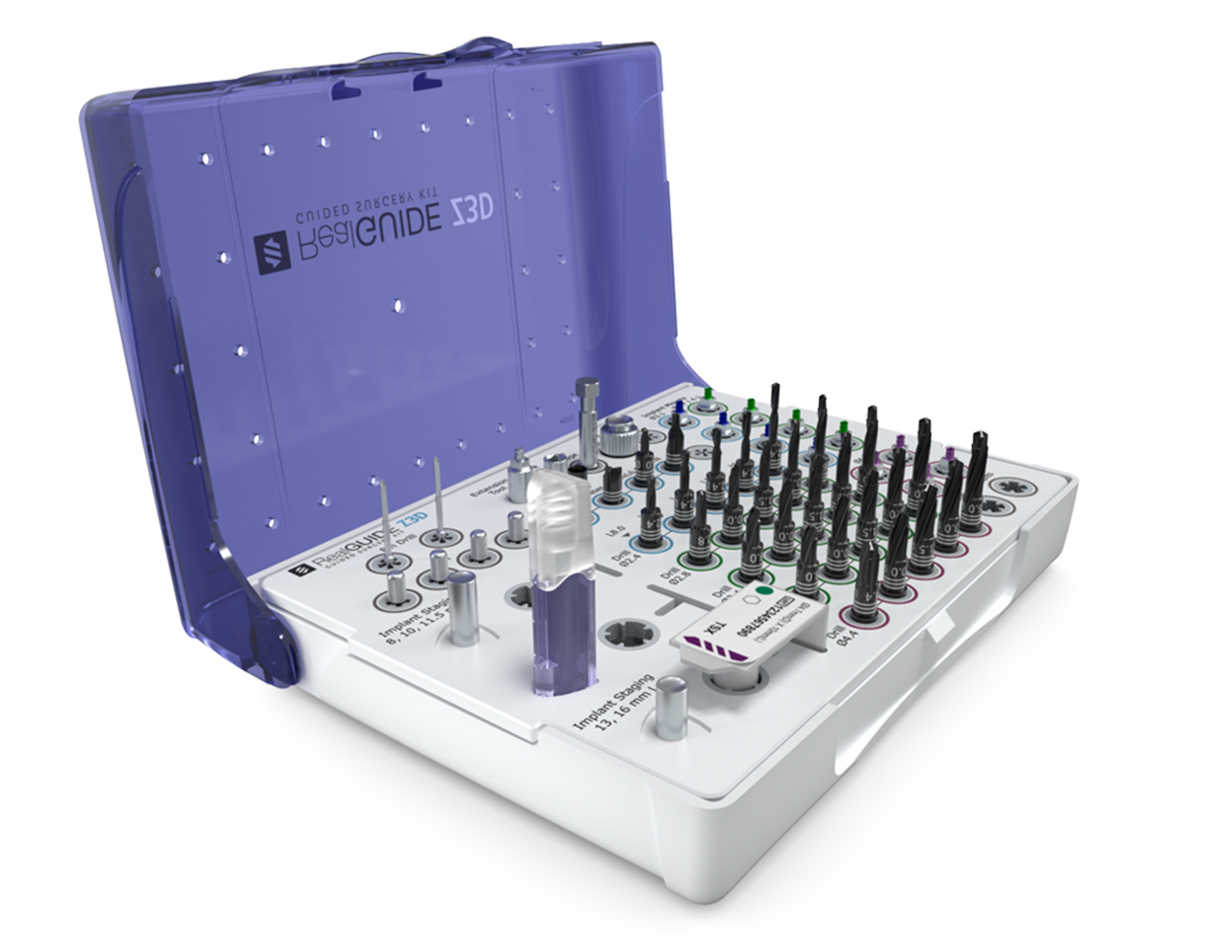

Guided Surgery Kit Features

  • Fully guided placement of ZimVie Dental Eztetic 3.1 mm Implant. TSX 3.1 mm, 3.7 mm, 4.1 mm, 4.7 mm and TSV/TM Implants in sizes 3.7 mm, 4.1 mm, and 4.7 mm.
  • Color-coded for ease-of-use.
  • Compact kit, which is useful for space-constrained dental offices.
  • No handles or keys are necessary while preparing the osteotomy.
  • DLC (Diamond-like Carbon) coating on the drills provides wear resistance characteristics.

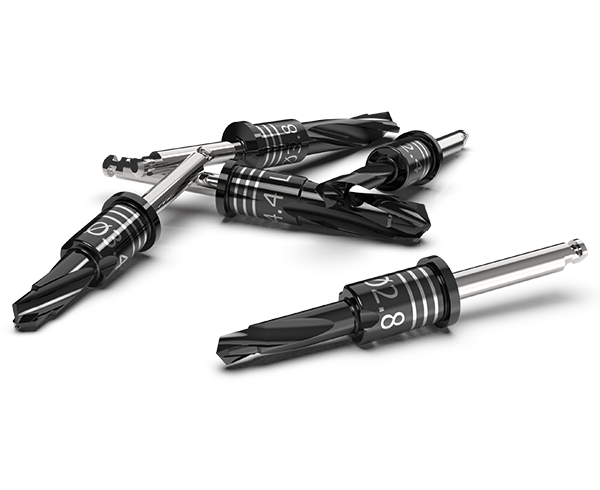

Drilling System

Drilling System

The drills in the RealGUIDE Z3D Guided Surgery Kit are made of hardened AISI 420B stainless steel and coated with DLC (Diamond-like Carbon) treatment which provides an increase in surface hardness and reduces the friction forces generated during use.

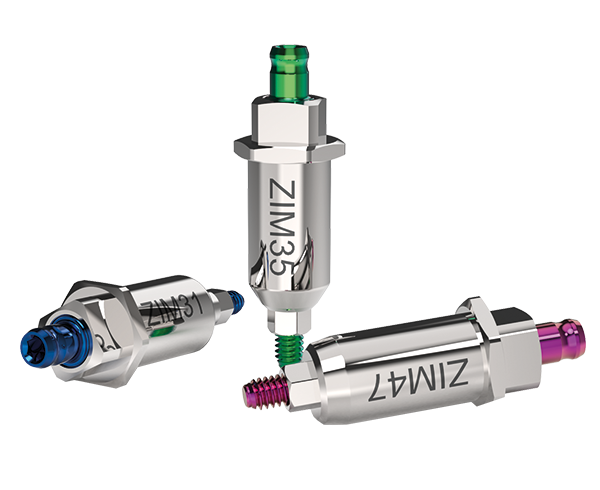

Implant Mounts

Implant Mounts

Includes implant mounts hex feature to align with the hex feature on the corresponding guide sleeves.

Staging pedestals for holding the implant vial to remove the Fixture Mount Transfer (FMT) of the TSV implants or to mount the TSX implants is available. This enables the TSV implants to be placed fully guided through the surgical guides.

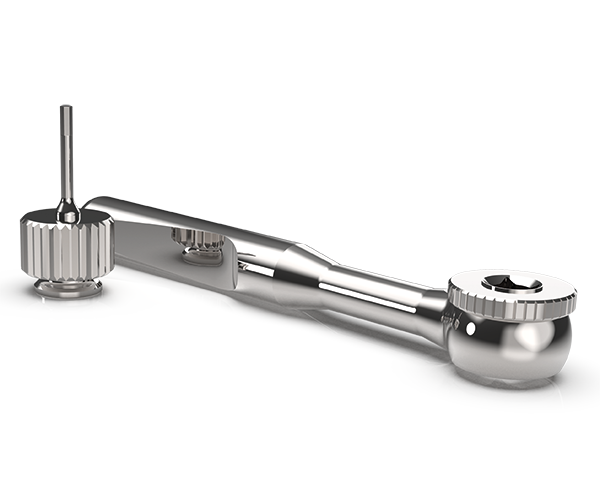

TSV Screwdriver and Ratchet

TSV Screwdriver and Ratchet

They can be bundled with the kit purchase, or use the instruments from your existing standard TSVKIT.

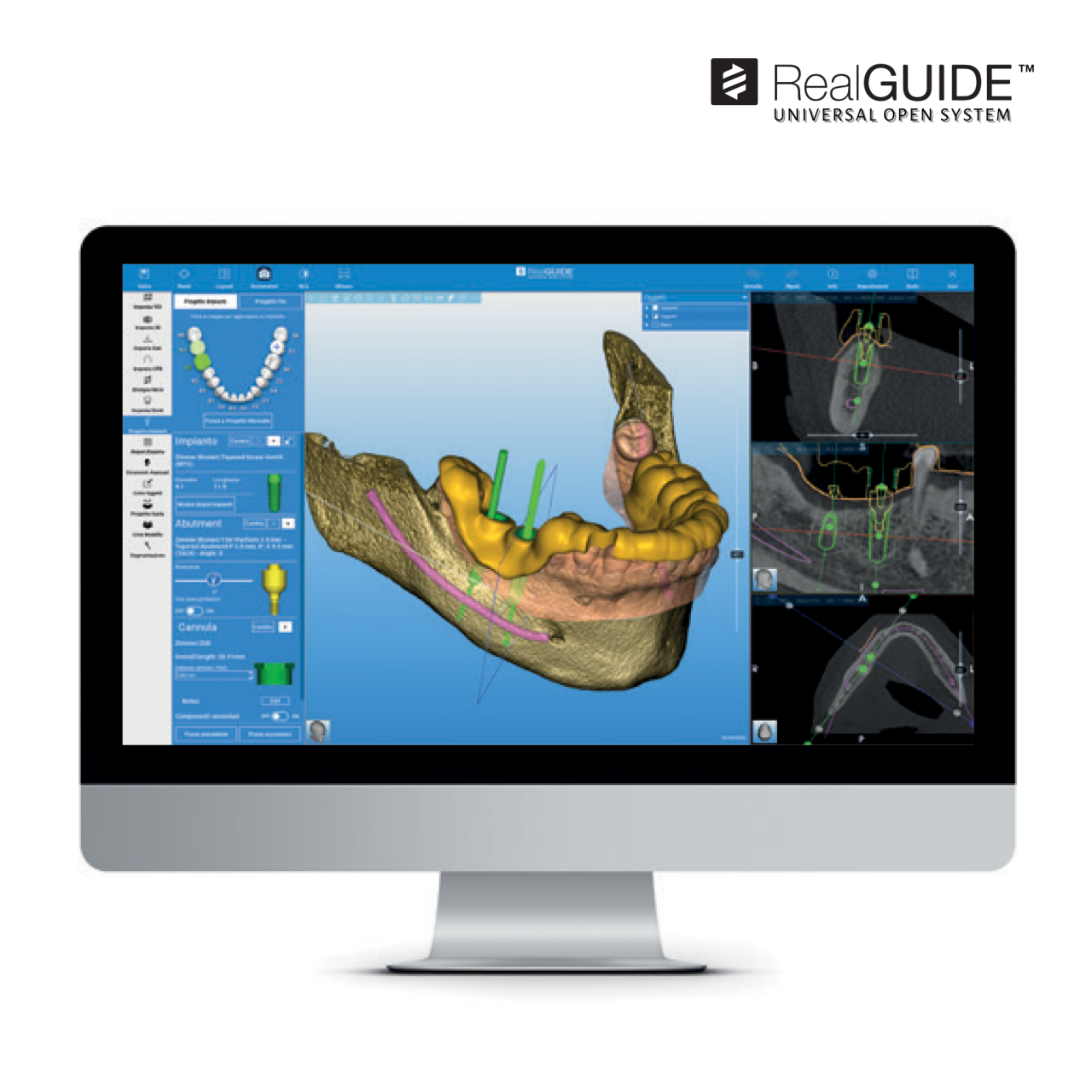

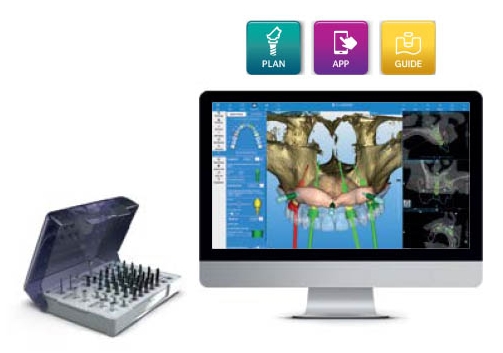

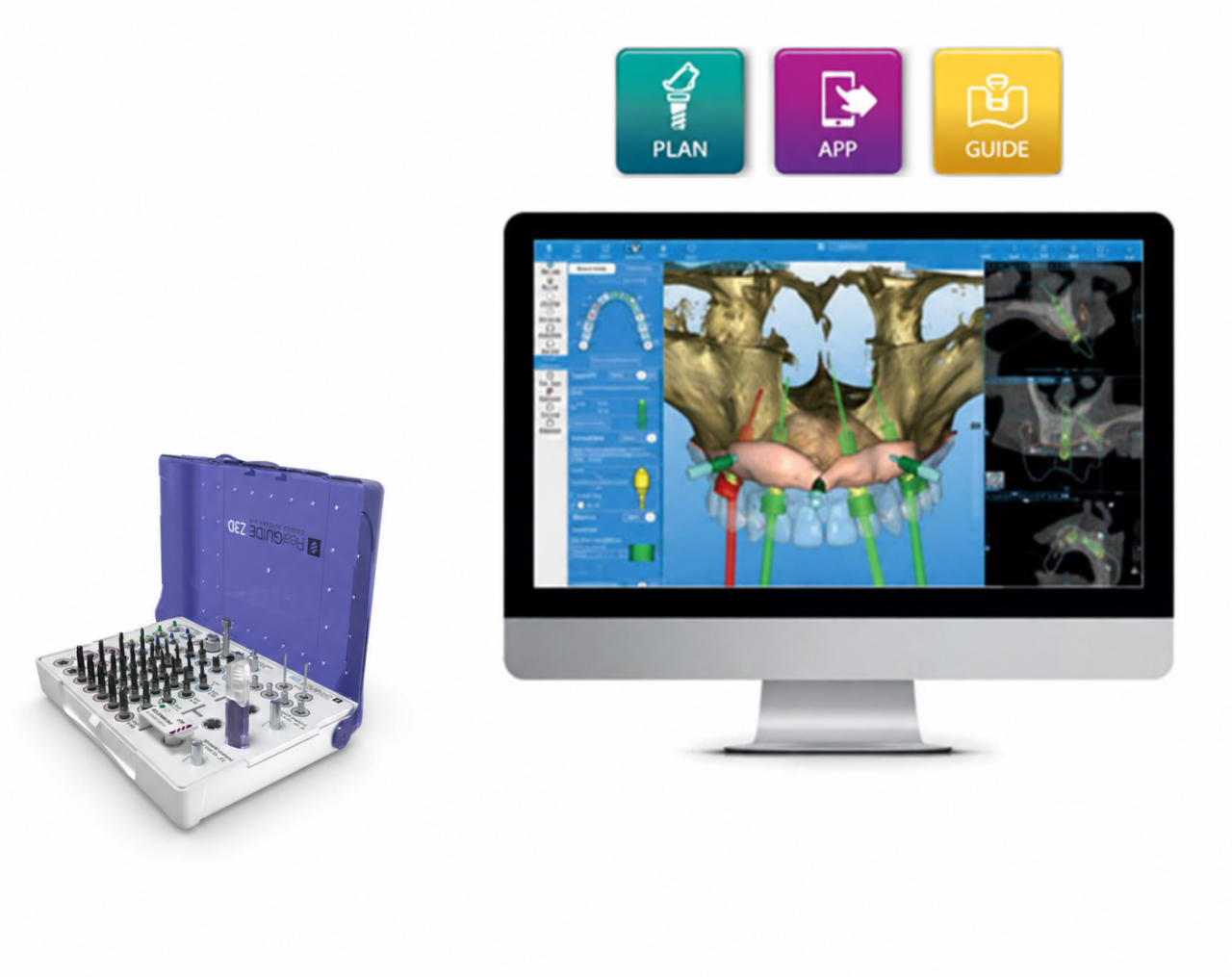

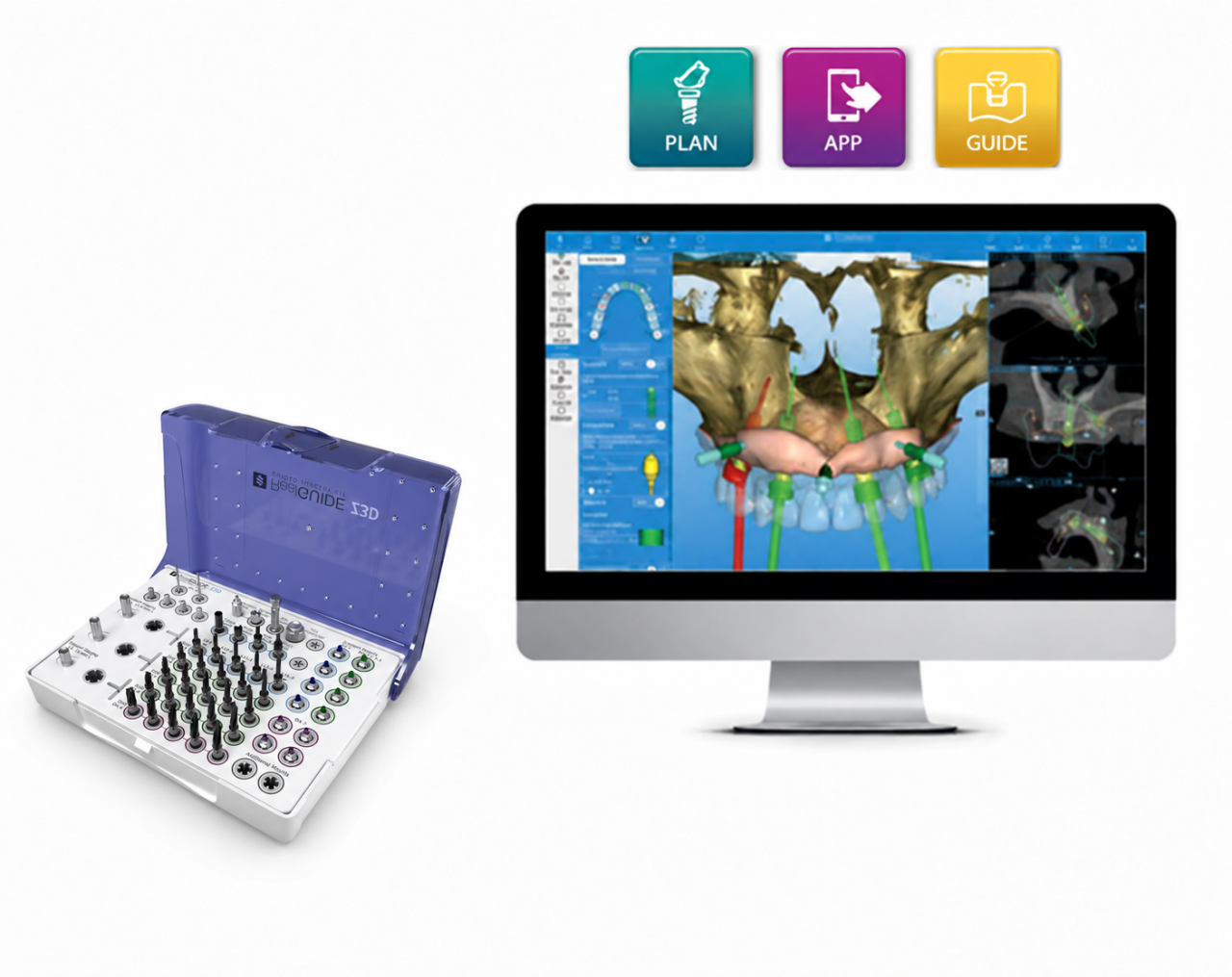

 RealGUIDETM Software Suite

The RealGUIDE Software Suite is the inhouse option for both the practice and laboratory.

The kit information is available in the RealGUIDE Software Suite,  an open system for diagnosis and advanced surgical guide design that will support you with customized drilling reports to be well-prepared for dental implant therapy.

Learn More
