Considerations

  • For retaining overdentures or partial dentures when resilience and facilitated oral hygiene are desired
  • Not for use when implants are convergent or divergent by greater than 11°, or when implants are less than 6.5 mm apart (center to center), or when there is less than 7 mm of inter-occlusal space coronal to the implant
ZimVie Institute

We offer world-class educational opportunities.

Our specialty courses focus on current and emerging dental procedures, technology and products, empowering you to exceed the needs of your patients and your practice.

Specifications

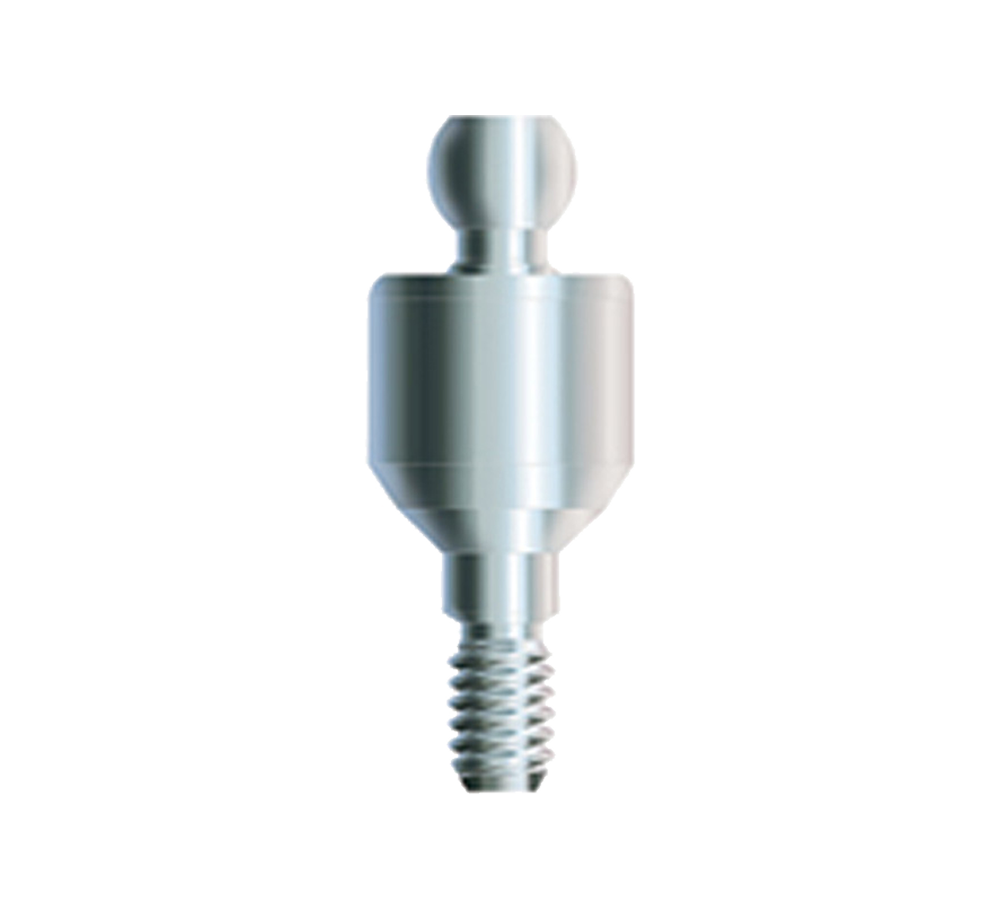

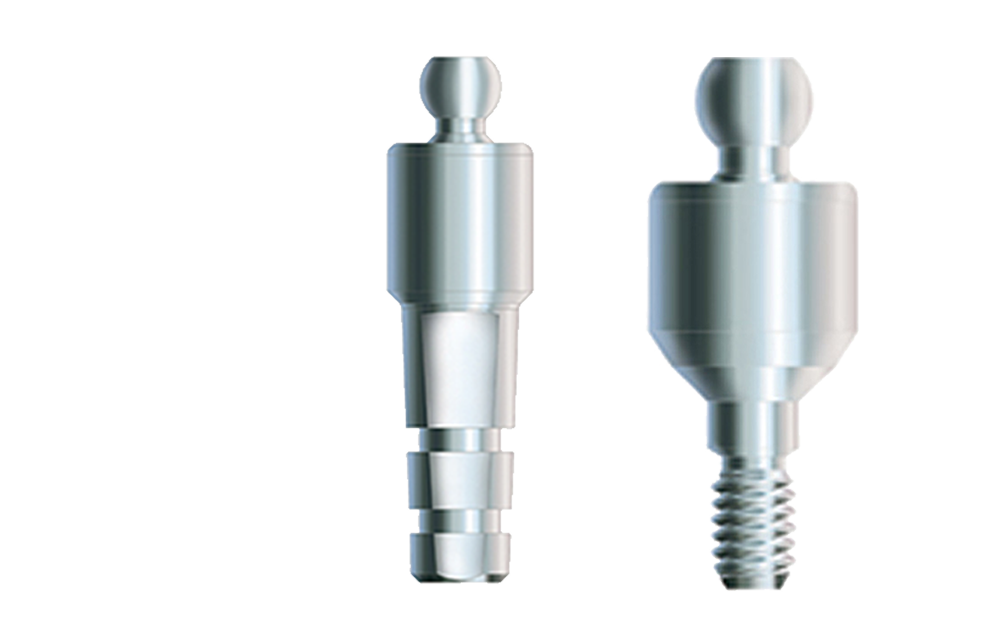

  • Ball abutment has a coronal diameter of 4.5 mmD while the ball components is 2.5 mm
  • The vertical height of the Cap Attachment (CA) above the coronal aspect of the Ball Abutment Collar is 4.28 mm and its diameter is 5.0 mm
  • Platform Sizes: 3.5 mm, 4.5 mm, 5.7 mm
  • Cuff Heights: 2.0 mm, 4.0 mm, 6.0 mm
