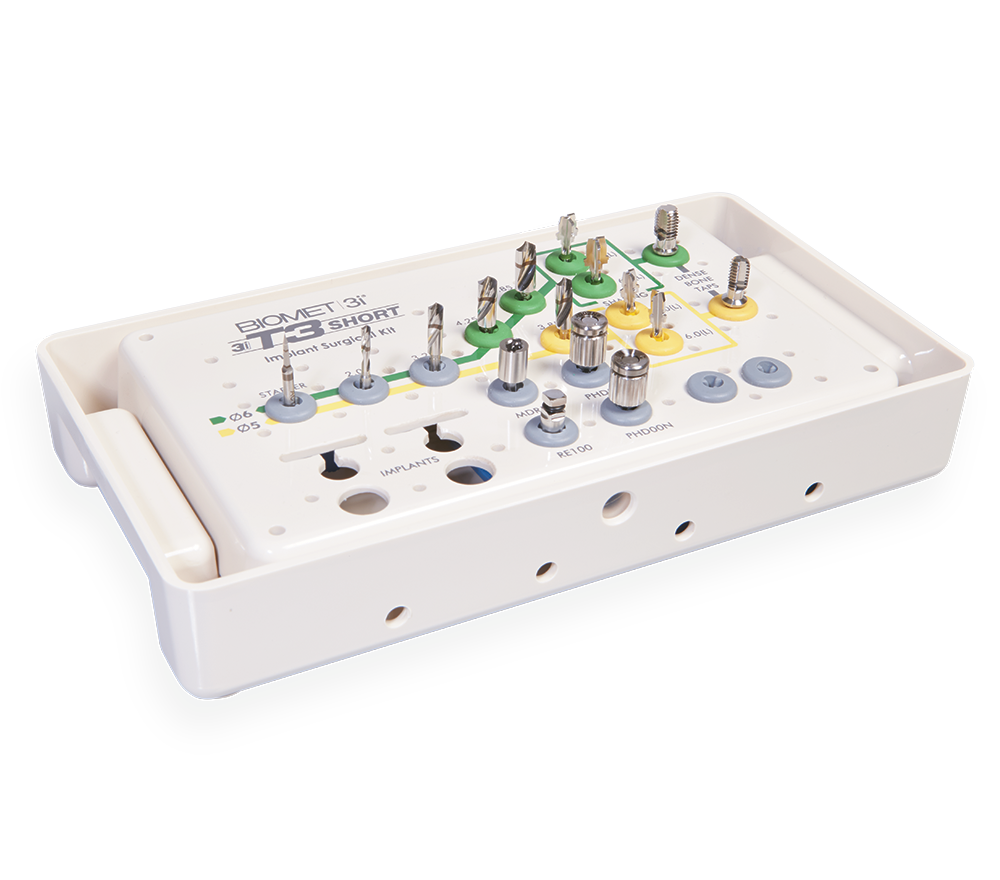

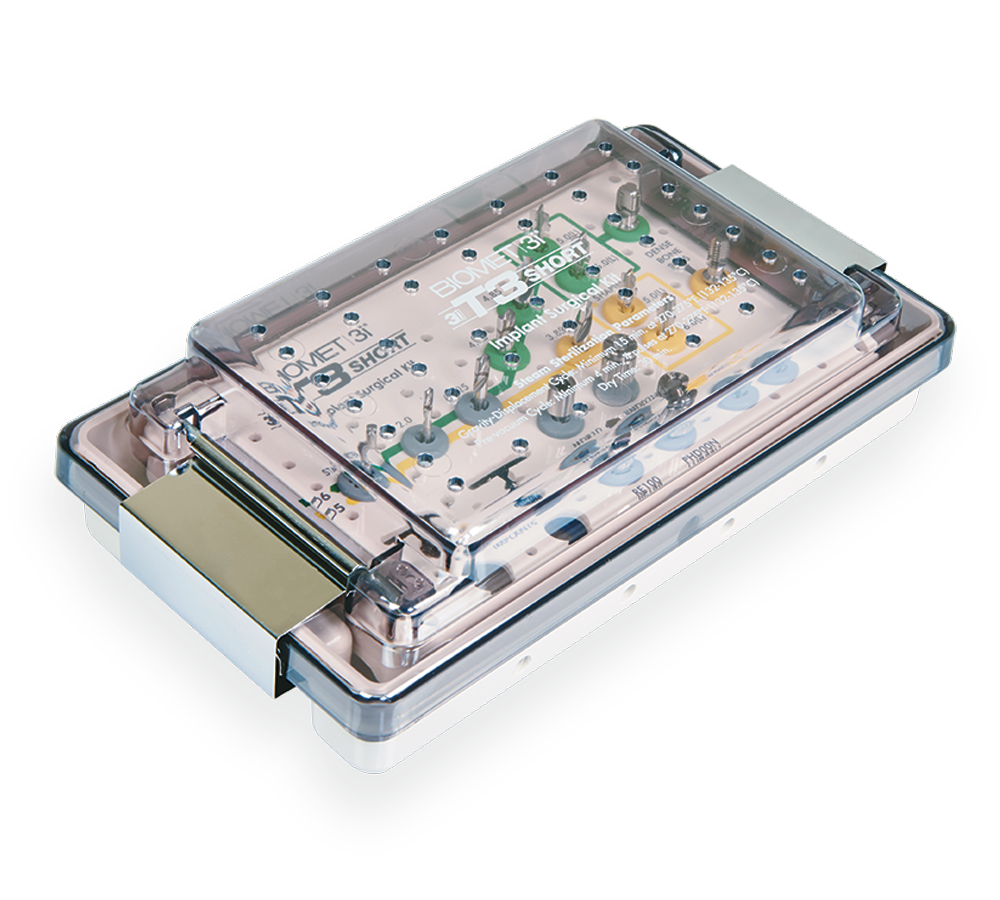

The ZimVie T3® Short Implant Surgical Kit is designed for efficient placement of T3 Short Implants, providing clinicians with color-coded, intuitive tools for precision, reliability, and streamlined implant procedures.

Implant Treatment Options for Vertical Height Deficiencies

The T3 Short Implant’s length and features are designed to provide an implant treatment option in some challenging clinical cases where the bone height is insufficient for standard length implants

Coarse and fine micron surface features are designed to create an average mean surface roughness value of 1.4 µm along the full length of the implant.1

T3 Short Implants Features & Benefits


T3 Surface

  • Blasted and acid-etched implant surface with an average roughness of 1.4 µm along the full length of the implant.1

Initial Bone-to-Implant Contact (IBIC)

  • The dimensions of the surgical instrumentation and the T3 Short Implant provide a tight implant-to-osteotomy fit, to assist with primary stability.2

Implant/Abutment Clamping Force

  • Proprietary* Gold-Tite Surface lubrication allows the screw to rotate further, increasing clamping force and maximizing abutment stability.3

T3 Short Surgical Kit Components

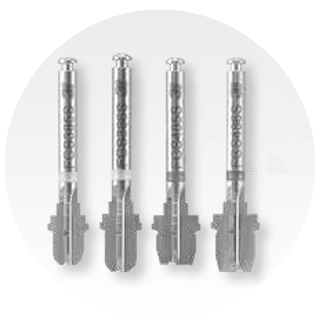

A set of ZimVie Flat Bottom Shaping Drills, specifically designed for dental implant site preparation. The image highlights these instruments' key features, including a flat-bottom cutting tip that creates an osteotomy precisely matching the implant's dimensions. These drills are used to refine and shape the bone site for optimal placement, ensuring excellent stability for the implant..

Flat Bottom Shaping Drills

  • Similar design to existing Tapered Implant Quad Shaping Drills
  •  Special cutting features
  • Flat-bottom cutting tip to prepare an osteotomy that matches the dimensions of the implant

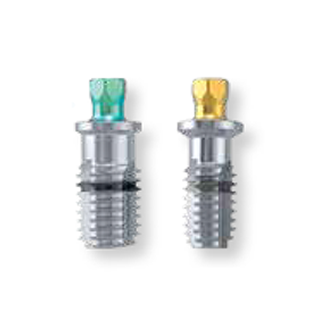

A set of ZimVie Dense Bone Taps, included in the T3 Short Implant surgical kit to prepare the bone for implant placement. The image shows two taps, designed for 5.0 mm and 6.0 mm diameter implants, which are used to engage and thread into dense bone, ensuring optimal stability for the T3 Short Implants. The taps have the same design as existing taps but are shorter to accommodate the specific dimensions of the T3 Short Implant system.

Dense Bone Taps

The surgical kit also includes taps for the T3 Short Implants:

  • One tap for the 5.0 mmD implants
  • One tap for the 6.0 mmD implants
  • Same design as existing taps but shorter

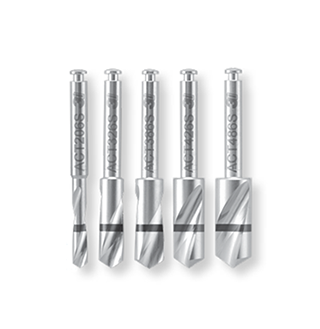

A set of ZimVie ACT Twist Drills, based on the design of standard length ACT Drills but optimized for precise depth control. The image shows the instruments, which feature a single laser mark indicating both 5.0 mm and 6.0 mm depths, designed for accurate osteotomy creation. These surgical drills are a key component for dental implant site preparation, providing a reliable and efficient solution for dental professionals.

ACT Twist Drills

  • Based on the design of standard length ACT Drills
  • One laser mark indicating two depths: 5.0 mm and 6.0 mm
  • The depth mark includes the drill tip length for precise depth drilling
  • Two cutting flutes at the tip 6.0 mm
