Other Restorative Components
Restorative Components For TSX®, TSV®, and TM Implant Systems

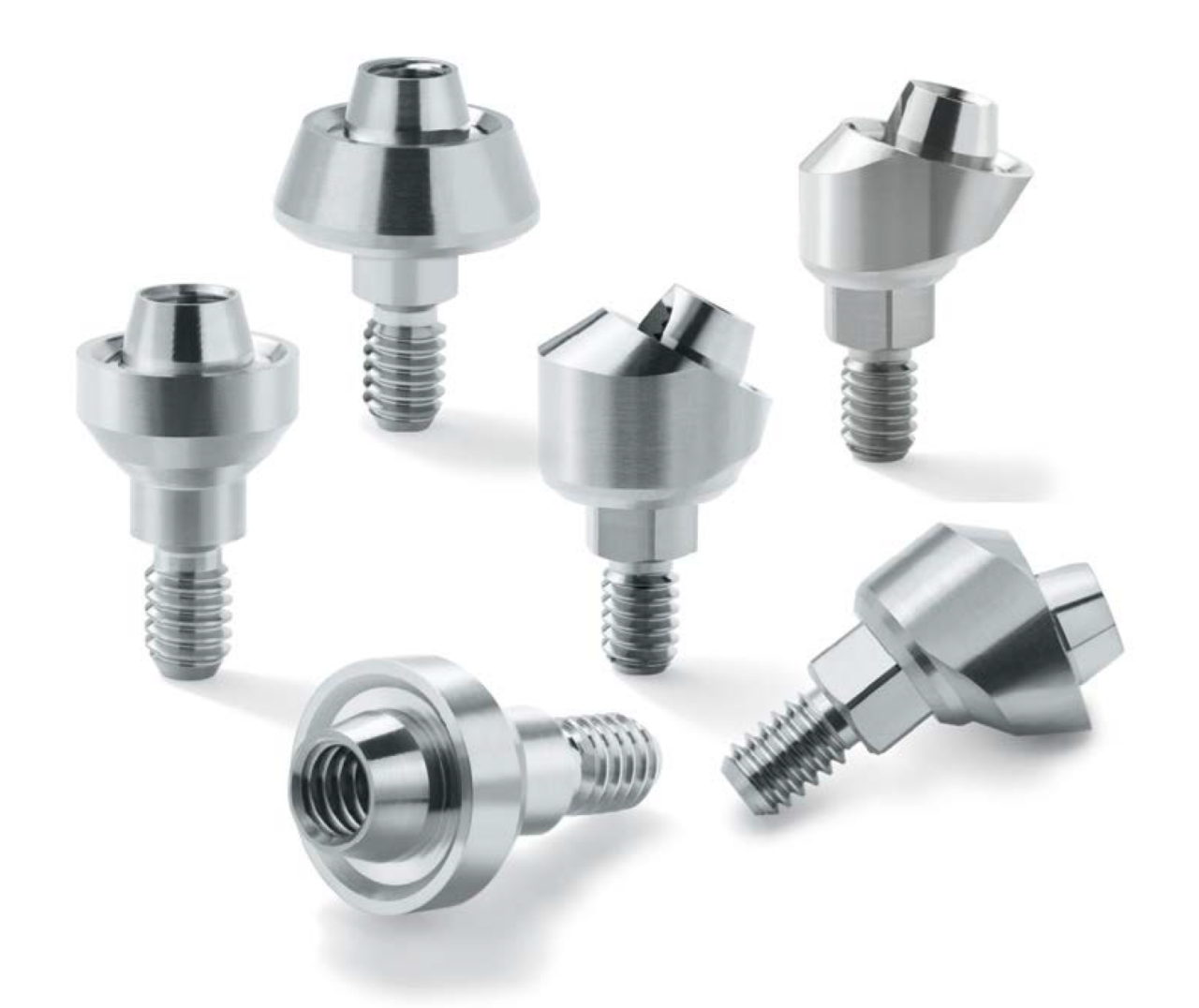

Tapered Abutments
Screw-Retained Restorations
The ZimVie Dental's Angled Tapered Abutments share the same restorative platform as tapered abutments, so there’s no need to learn new restorative techniques. Restorative components are interchangeable so inventory checks and stocking requirements for your practice are also minimized, thanks to the common 4.5 mmD restorative platform.
ZimVie Dental's Angled Tapered Abutments 30° are 25% stronger than competitor 30° Multi-unit Abutments in fatigue strength testing and over 80% stronger in compression strength testing1

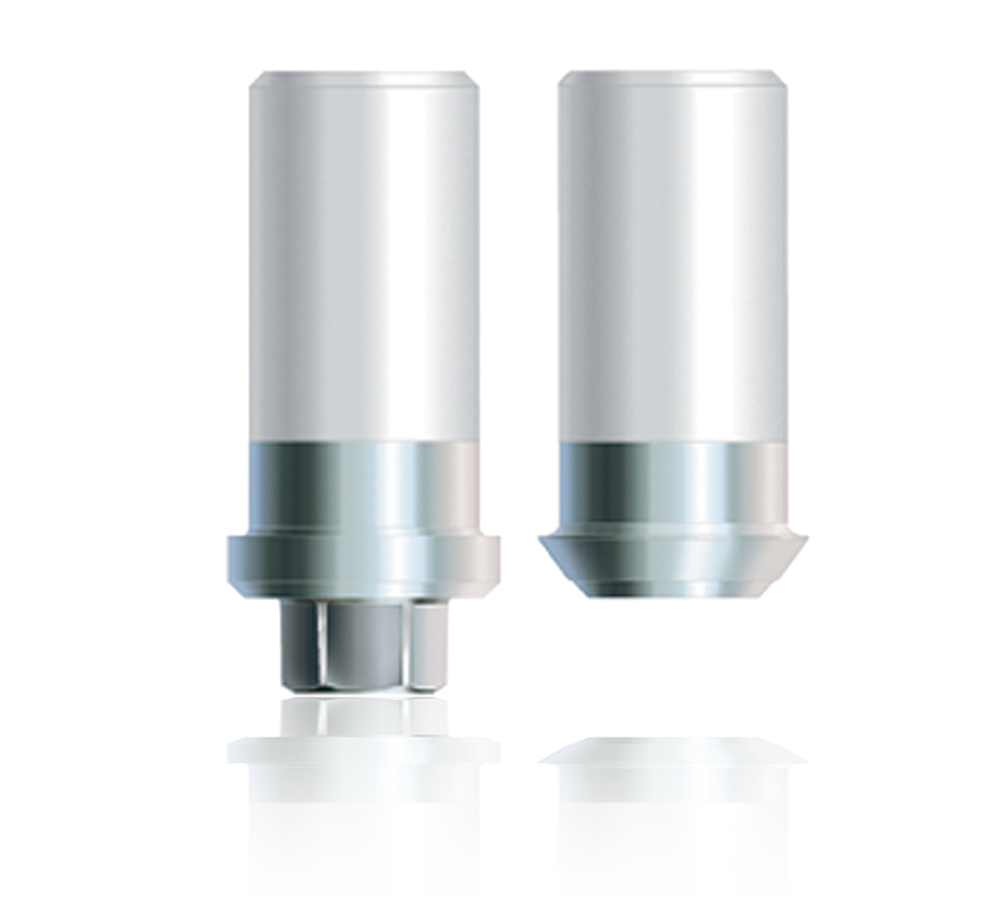

Custom “Cast-To” Gold Abutments
Custom Abutments
Fabricate the working cast utilizing one of the transfer procedures mentioned in the previous section. “Cast-To” Gold Abutments for internal hex [HLA3G, HLA4G, and HLA5G] implants consist of a hexed, gold “Cast-To” Abutment body, abutment screw and 3.8 mmD press-fit Plastic Sheath [OPS].
Versatile Solutions for Patients Who Demand More Choices and Faster Results

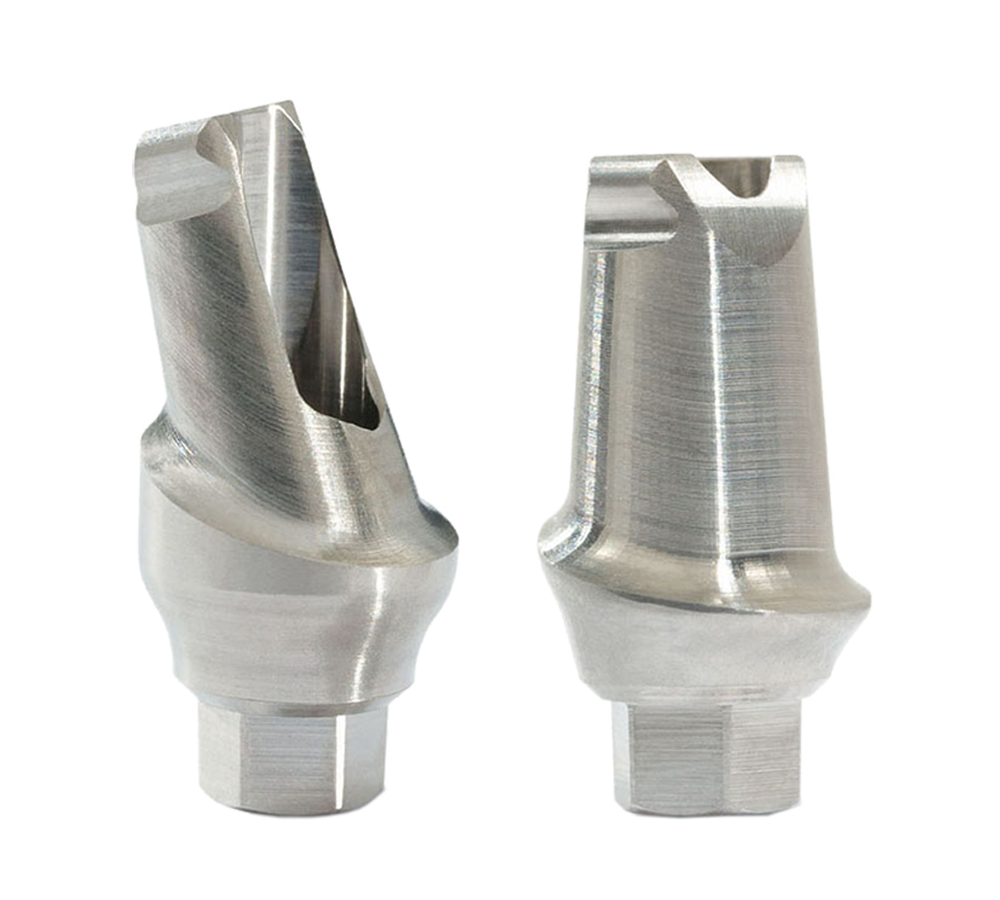

Hex-Lock® Contour Abutments
Cement-Retained Restorations
Save time and simplify the restorative process with ZimVie Dental’s Hex-Lock Contour Abutments.
- Hex-Lock Contour Abutments, Straight
- Hex-Lock Contour Abutments, 17°
- Hex-Lock Short Abutments
Includes a Retaining Screw

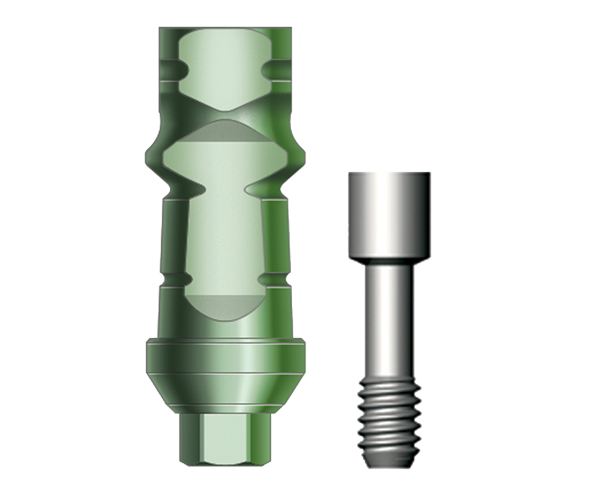

Impression Transfer
Components For Impression Transfers
- Implant Placement - The Fixture Mount is used as a mean to deliver the implant to the surgical site and provides convenient color-coded identification that matches the implant analogs.
- Implant-Level Transfer - The Fixture Mount then functions as a transfer that is conveniently pre-attached to the implant. Surgeons can take an immediate index or impression to complete the transfer, or restoring doctors can use it after the healing period.
- Preparable Temporary Abutment - The Fixture Mount may also be prepared to function as a temporary abutment while the final restoration is being fabricated.

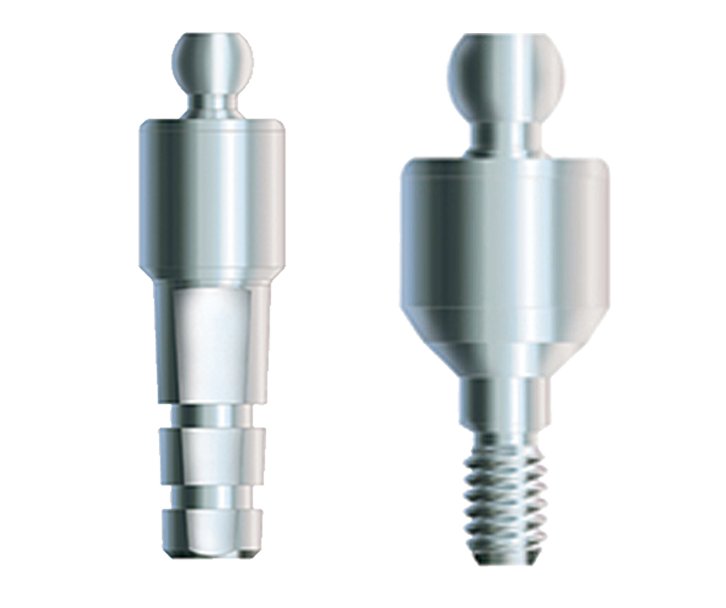

One-Piece Ball Attachments and Components
Overdenture Restorations
- For retaining overdentures or partial dentures when resilience and facilitated oral hygiene are desired
- Not for use when implants are convergent or divergent by greater than 11°, or when implants are less than 6.5 mm apart (center to center), or when there is less than 7 mm of inter-occlusal space coronal to the implant
