Express and Flex Abutments

What Ti-Bases Were Meant To Be

For Certain and Tapered Screw-Vent® (TSV) Implants

Hero jumplink image
Digital WorkflowResourcesSupport

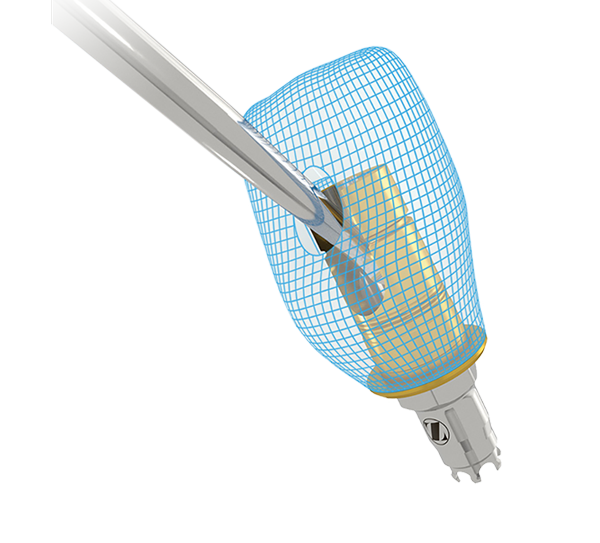

Certain® Express and Flex Abutments

  • Certain BellaTek Express and Certain BellaTek Flex are the original cement- or screw-retained abutments for angled screw access channel restorations for Zimmer Biomet Dental Certain Implants.

REQUEST MORE INFORMATION

Unrivaled Flexibility

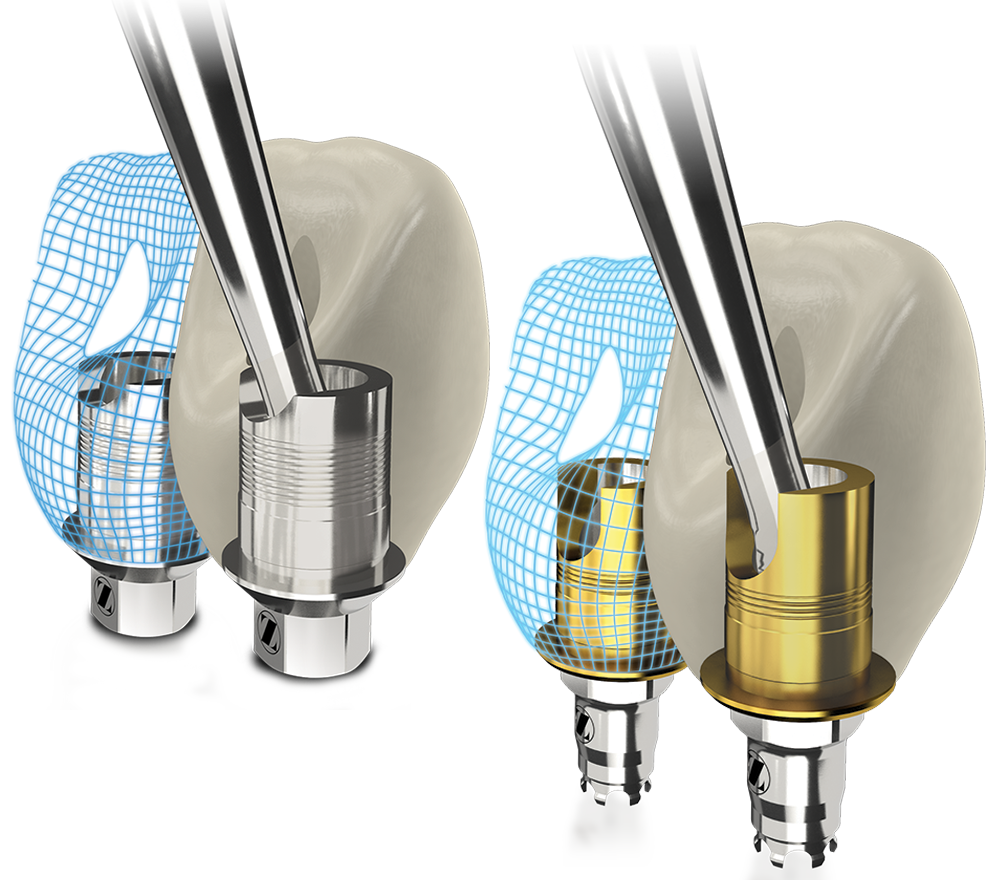

The Certain BellaTek Flex Abutment provides a unique 12 mm post for cases that demand taller heights with greater surface for bonding to the crown. Machined grooves on the abutment’s post indicate height adjustments at 4.75, 7, 9 and 12 mm. Leave the abutment at 12 mm or cut it at one of the three indicated heights that best fits your case and digitally design the crown from the library files with the matching heights on your preferred software.

Features & Benefits

  • Enabled Angles For Versatility access in challenging inter-arch spaces. Additionally, the Angled Channel Screwdriver is engineered to work with the existing Gold-Tite® Screw at the same torque values used on the straight screw access channel.
  • Multi-Unit Cases Unlocked - The Certain BellaTek Express and Flex Abutments are also available for multi-unit cases. The non-engaging connection allows for the freedom of rotation ideal for making multi-unit bridges.
  • Added Strength On Wider Platforms Different than other Ti-base type abutments in the market, the post wall of Certain BellaTek Express and Flex Abutments thicken in wider platform diameters, providing additional support for larger restorations, thus mitigating restoration delamination.

BellaTek Express and Flex 3Shape Guidelines

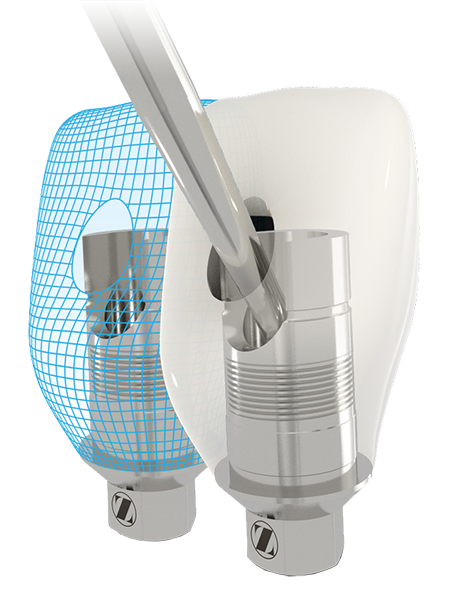

TSV® Express and Flex Abutments

  • TSV BellaTek Express and TSV BellaTek Flex are the original cement- or screw-retained abutments for angled screw access channel restorations for ZimVie Dental Tapered Screw-Vent® (TSV) Implants.

REQUEST MORE INFORMATION

Get Restorative Flexibility, Efficiency and Strength

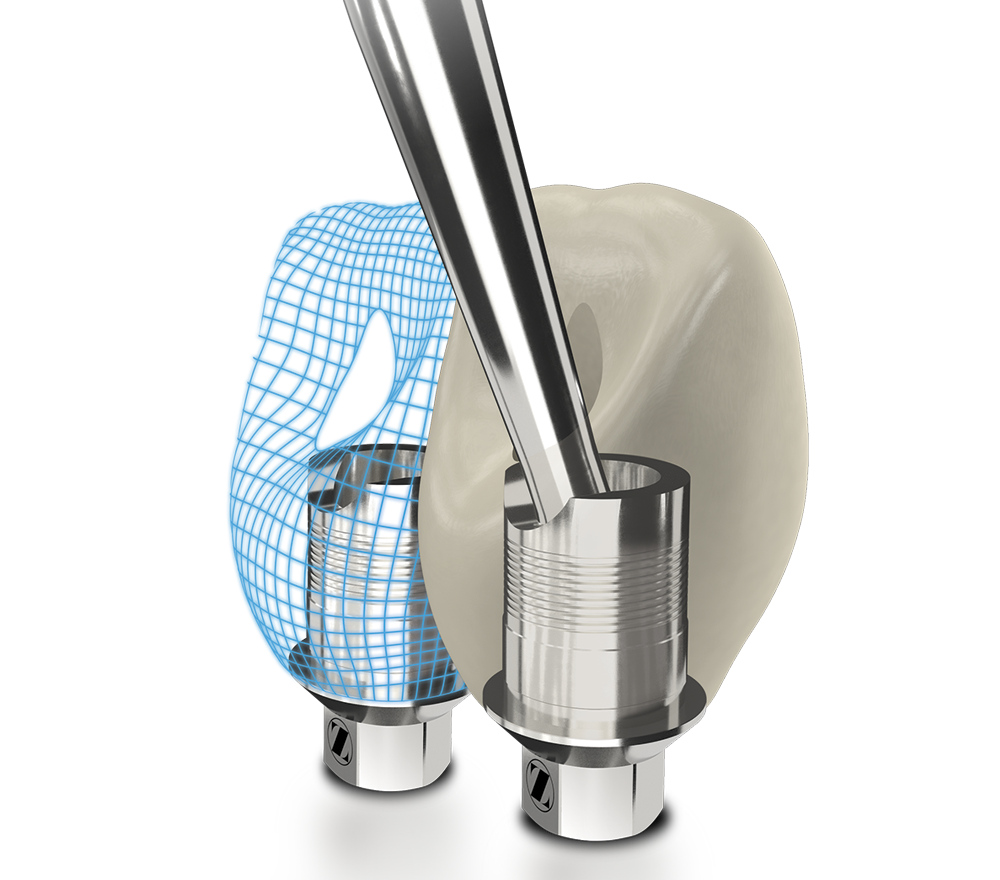

The TSV BellaTek Flex Abutment provides a unique 12 mm post for cases that demand taller heights with greater surface for bonding to the crown. Machined grooves on the abutment’s post indicate height adjustments at 4.75, 7, 9 and 12 mm. Leave the abutment at 12 mm or cut it at one of the three indicated heights that best fits your case and digitally design the crown from the library files with the matching heights on your preferred software.

Features & Benefits

  • Unrivaled Flexibility - The TSV BellaTek Flex Abutment provides a unique 12 mm post for cases that demand taller heights with greater surface for bonding to the crown.
  • Convenience Within Reach - The TSV BellaTek Express Abutment conveniently comes at 4.75 mm post height, providing efficiency for cases that do not require taller heights.
  • Enabled Angles For Versatility - Place the Angled Screw Channel anywhere from 0 to 25° for improved aesthetics in interior cases and for better access in challenging inter-arch spaces.

BellaTek Express and Flex 3Shape Guidelines

Take Full Advantage Of The Encode Impression System Workflow

The Encode Impression System is designed to streamline the treatment process for the surgeon, restorative clinician and laboratory by eliminating the need for implant level impressions. In addition, patients have a better experience and a beautiful aesthetic outcome as compared to traditional techniques using impression material and copings. Design and mill  CAD/CAM single- and multi-unit restorations from Encode Healing Abutments scans or impressions.

Library files for ZimVie Certain Lab Scan Bodies are also available.

Download Scan-Body STL File

Encode Impression System Workflow Options:

1. Encode Empowered Laboratory (EELs): Through a non-exclusive license , the EELs have access to the BellaTek Encode Impression System Libraries and can receive a scan file or a scan of BellaTek Encode Healing Abutments for the CAD/CAM workflow.

2. Non-Encode Empowered Laboratory: Send a scan via 3Shape® software or stone model to Zimmer Biomet Dental for 3D model designing, printing and analog placement. The model will then be shipped with an analog and a Certain BellaTek Express or Flex Abutment.

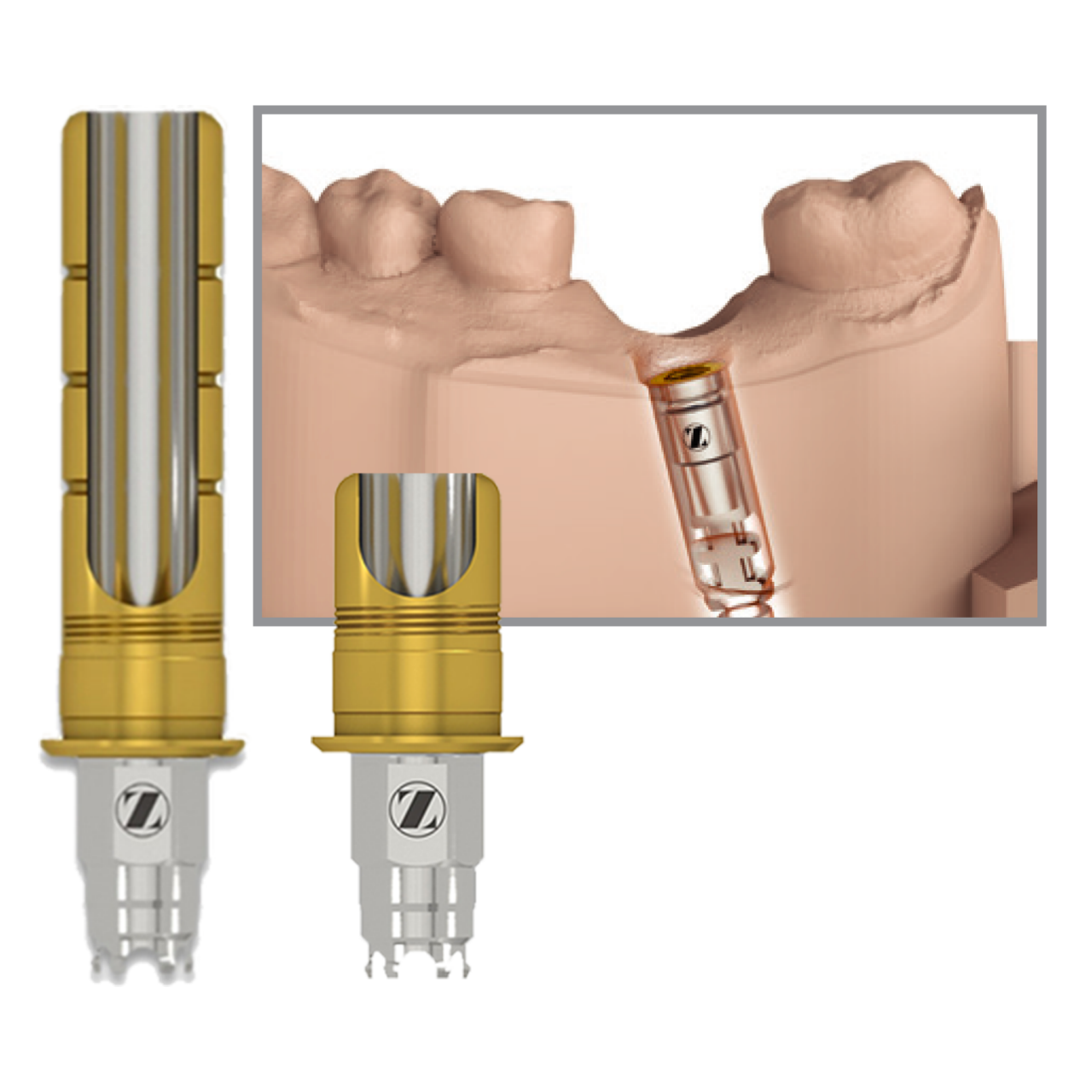

Digital Laboratory Analogs for 3D Printed And Stone Models

Integrating with Express and Flex Abutments workflow, The Digital Analogs are designed and manufactured to exact tolerances and specifications in order to accurately replicate implant placement in 3D printed or stone models.
